Online Scroll Test
An online mouse wheel scroll test tool that provides real-time preview charts and data dashboards. It tests the hardware status of mouse wheels using multiple algorithms, generates test reports, and offers explanations of the testing algorithms.Before starting the scroll test, please click the “Start Test” button, or double-click the mouse icon in the test area with the left mouse button to begin. Note: During the test, we recommend scrolling the mouse wheel in one direction only. Also, avoid scrolling too quickly between consecutive scrolls, as doing so may affect the accuracy of the test results.
0.
00
Scroll Test Area
Scroll Test Graph
Scroll Test Dashboard
Wheel Speed
0
The number of events generated by the mouse scroll wheel per second.
DeltaMode
/
The unit of measurement for the scroll values (deltaX, deltaY).
Last DeltaY
0
The DeltaY value produced by the scroll wheel's most recent scrolling operation
Last DeltaX
0
The DeltaX value produced by the scroll wheel's most recent scrolling operation
Vertical Scroll
0
The total accumulated vertical scroll amount of the scroll wheel
Horizontal Scroll
0
The total accumulated horizontal scroll amount of the scroll wheel
DeltaY Max Value
0
Maximum vertical scroll value
DeltaY Min Value
0
Maximum horizontal scroll value
Simple steps to use Scroll Test?
Follow these simple steps to start the mouse scroll wheel test. Within minutes, you can determine the hardware condition of the mouse scroll wheel by monitoring its scrolling data.
Start Test
Locate the mouse scroll test area on the webpage, which is positioned in the upper-left corner and displays a mouse icon in the center. Click the “Start Test” button below the area to begin monitoring scroll data. You may also double-click the left mouse button within the testing area to start the test. Once the test begins, a dynamic ripple animation will appear in the scroll area.
Data Collection
After starting the test, simply keep scrolling the mouse wheel within the testing area to begin collecting data. Please note that you must scroll in a single direction—either continuously upward or continuously downward. Do not change scrolling directions repeatedly during a single test, as this will affect the accuracy of the results. In most cases, we recommend scrolling for at least 20 seconds.
Generate Report
When you believe the test duration is sufficient, double-click the left mouse button within the testing area to stop data collection, or click the “End Test” button below the area. Then click “Generate Report” to analyze the scroll data. The system uses multiple algorithms to determine whether the mouse wheel is malfunctioning. The final report highlights abnormal scrolling points in chart form to help you identify potential issues.
Start Test
Locate the mouse scroll test area on the webpage, which is positioned in the upper-left corner and displays a mouse icon in the center. Click the “Start Test” button below the area to begin monitoring scroll data. You may also double-click the left mouse button within the testing area to start the test. Once the test begins, a dynamic ripple animation will appear in the scroll area.
Data Collection
After starting the test, simply keep scrolling the mouse wheel within the testing area to begin collecting data. Please note that you must scroll in a single direction—either continuously upward or continuously downward. Do not change scrolling directions repeatedly during a single test, as this will affect the accuracy of the results. In most cases, we recommend scrolling for at least 20 seconds.
Generate Report
When you believe the test duration is sufficient, double-click the left mouse button within the testing area to stop data collection, or click the “End Test” button below the area. Then click “Generate Report” to analyze the scroll data. The system uses multiple algorithms to determine whether the mouse wheel is malfunctioning. The final report highlights abnormal scrolling points in chart form to help you identify potential issues.
Algorithm Analysis
Algorithm 1: Basic Signal Reversal (Basic Pattern)
Mechanism：Detects whether a simple negative signal appears in a Positive -> Positive -> Positive sequence. Like suddenly shifting into reverse gear once while driving forward.
Normal: Most mice have fixed signals per notch (e.g., 100). The straight line represents stability.

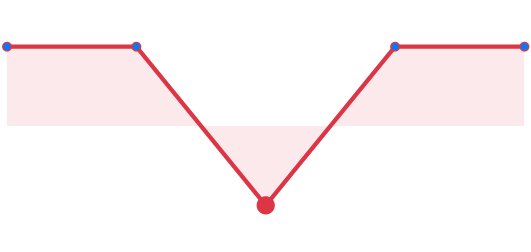

Abrupt reverse spike, typical contact oxidation.
Algorithm 2: Stroke Consistency
Mechanism：Simulates real physical motion. A complete stroke should be like a mountain peak: speed goes from slow to fast and back to slow. If while rapidly 'going downhill,' the chart suddenly shows you 'teleported' to the sky (negative value), this is the advanced fault captured by Algorithm 2.

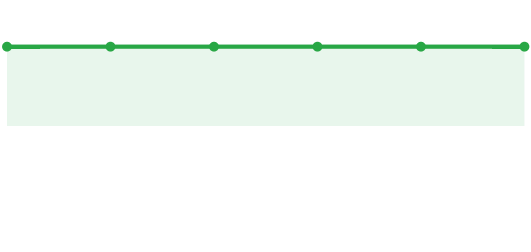

Normal Stroke: Continuous scrolling produces a series of stable forward signals (straight line or steps).

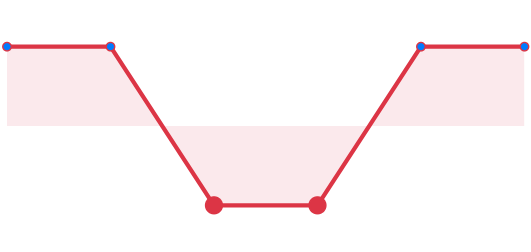

Abnormal Stroke: During a single stroke, continuous reverse noise is mixed in (square wave pulses).
Purpose of Scroll Test
Mouse scroll test is a very common hardware test. Mouse scroll wheels have many efficiency-enhancing uses in practice, so maintaining a normal mouse wheel and performing scroll test is an essential operation for improving operational efficiency.
Web Page Zoom
Ctrl + Scroll Wheel quickly enlarges or reduces webpage fonts, images, and layout; more intuitive than menu operations, suitable for reading pages of different sizes.
Open New Links
Directly open web pages in a new tab without right-clicking and selecting 'Open in New Tab,' making multi-page browsing more efficient.
Close Tabs
Middle mouse button (scroll wheel click) on a tab directly closes the browser tab, avoiding switching to the target tab and clicking '×,' multiplying efficiency.
Horizontal Scrolling
Shift + Scroll Wheel scrolls left and right on wide pages (such as tables, images, video timelines), replacing dragging the bottom scrollbar.
Why scroll test is important?
Although the scroll wheel is just a small component of the mouse, it is involved in over 90% of daily operations — from browsing web pages and editing documents to professional design and gaming. When the wheel malfunctions, operational efficiency decreases, the user experience becomes fragmented and choppy, hand operation burden increases, and prolonged use more easily leads to fatigue.
| Scenario | Impact | Detailed Description |
|---|---|---|
| Web Browsing | Unable to smoothly scroll pages up and down | When reading news, forums, or social media, the scroll wheel is the primary means of page navigation. Once the wheel becomes unresponsive or jumps severely, you need to frequently drag the right-side scrollbar, resulting in large hand movement distances, frequent operation interruptions, and an extremely poor reading experience. |
| Document Editing (Word, PDF, Excel) | Difficulty reading or locating content | When the scroll wheel fails to function properly while editing long documents, finding paragraphs or table positions becomes tedious. Especially when viewing PDF documents, having to drag the scrollbar for every page turn significantly reduces efficiency. |
| Programming/Code Review | Reduced code browsing efficiency | Developers typically use the scroll wheel to quickly browse code, logs, or configuration files. An unresponsive wheel causes stuttering, line skipping, or inaccurate positioning during scrolling, seriously affecting debugging and problem-finding efficiency. |
| Image Viewing | Unable to zoom or scroll to view large images | In image viewers, Photoshop, and similar software, the scroll wheel is commonly used to zoom or move images up and down. Wheel malfunction makes it impossible to precisely adjust zoom levels, making detail viewing operations clumsy. |
| Gaming Operations | Abnormal weapon switching or camera control | In shooter or MMO games, the scroll wheel is often used to switch weapons, items, or zoom the map. Unresponsiveness causes misoperations (such as selecting the wrong weapon), and wheel drift may cause the screen to zoom unexpectedly, affecting game experience or even match results. |
| Scroll Acceleration or Inertia Loss | Abnormal scrolling speed, lack of smoothness | Some mice support 'inertial scrolling,' and when it fails, scrolling becomes abrupt, page movement distance becomes unpredictable, requiring frequent scrolling to reach target positions. |
| Wheel Sticking or Drift | Page automatically bounces up and down | When the wheel sensor is damaged, 'ghost scrolling' phenomenon may occur, causing pages to automatically scroll or jump randomly, leading to click misalignment, text selection difficulties, and an extremely poor user experience. |
| 3D Modeling / CAD Software | Limited camera operations | In software like Blender and AutoCAD, the scroll wheel controls camera zoom and pan. If the wheel stutters, model browsing becomes difficult, camera jumps occur, and precise modeling becomes impossible. |
| Video Editing/Audio Editing | Timeline zooming and navigation difficulties | In editing software (such as Premiere, Audition), the scroll wheel is commonly used to zoom the timeline or pan the view. Wheel failure makes frame positioning and clip fine-tuning exceptionally time-consuming, with reduced precision. |
Frequently Asked Questions
Quick answers to common questions about scroll wheel test.
This usually happens because the test has not been officially started yet, so the tool is not collecting mouse wheel events. To start the test, click the “Start Test” button below the “Scroll Test Area” on the left side of the tool, or simply double-click the mouse icon inside the “Scroll Test Area”.
Mouse wheel issues can be caused by several factors, such as low battery power, a worn or damaged scroll wheel, or dust buildup inside the mouse.
No. Scroll Test does not support mobile devices because mobile devices do not have a physical mouse wheel. Although JavaScript can listen to the onScroll event on mobile, it cannot detect wheel events. These two are fundamentally different: Mobile scrolling = finger swiping + inertia scrolling, while PC mouse wheel scrolling = discrete physical step-based input.
If you are using a wireless mouse, first check whether the issue is caused by low battery power. Try replacing the battery with a fully charged one and test again. If the battery is not the issue and the scroll wheel behavior is only slightly abnormal, disconnect the mouse and use a hair dryer (cold air only) to blow dust out of the gaps around the scroll wheel. You can also clean the gaps using a cotton swab with a small amount of alcohol. Let the mouse dry completely before using it again. If your mouse shows issues such as reverse scrolling or jumpy scrolling, you can open the mouse and clean the scroll wheel encoder. If the mouse is expensive, we recommend taking it to a professional repair service.
To achieve the most accurate test results, please follow these guidelines: During the test, scroll the mouse wheel in one direction only. Avoid scrolling too frequently. Keep an interval of at least 300 milliseconds between consecutive scrolls. This helps prevent the testing algorithm from misinterpreting the scrolling behavior.
